How To Remove a Load Bearing Wall | Temporary Shoring Framing Stage
RemovalWhen planning a full home remodel or opening up a kitchen and living space, removing a wall is often the most effective way to achieve a modern, spacious floor plan. However, when that wall is load-bearing, the structural integrity of the home must be carefully managed throughout every phase of construction. Many homeowners wonder what happens immediately after a load-bearing wall is taken down but before the new support beam is permanently installed. This phase is known as the intermediary stage of structural remodeling. It requires precise engineering, specialized carpentry, and a strict adherence to safety protocols to ensure the ceiling structures remain perfectly secure.
The Role of Temporary Shoring in Structural Remodeling

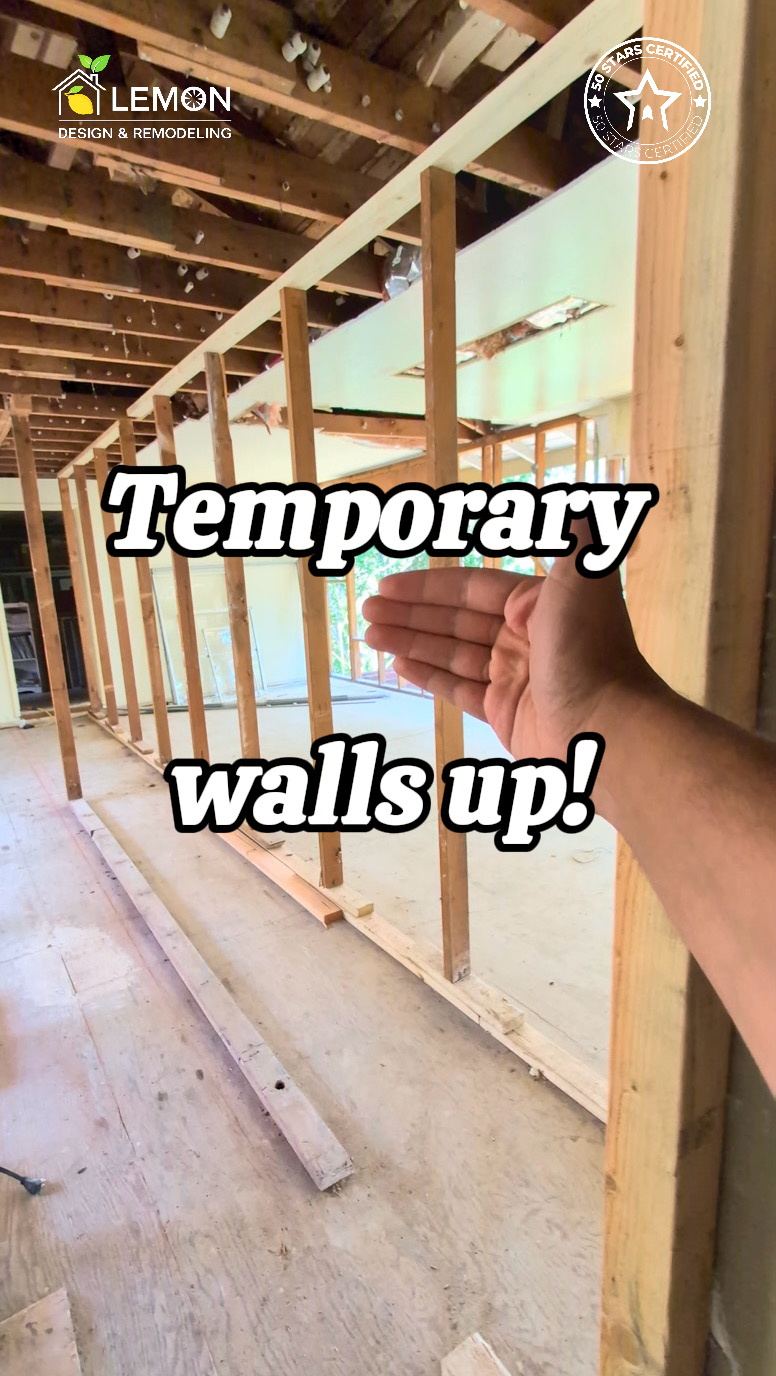

Once a load-bearing wall is carefully dismantled, the weight it previously supported must be immediately transferred to a temporary system. Contractors achieve this by constructing temporary shoring walls. During this intermediary phase, structural builders erect two temporary walls on either side of the original wall location.
- First Temporary Support System: One temporary wall is built up to safely hold one section of the ceiling joists.6
- Second Temporary Support System: A parallel temporary wall is constructed to hold up the opposing section of the ceiling joists.2
These framing structures run parallel to where the old wall used to be and act as a reliable substitute, preventing any sagging or structural failure while the permanent modifications are underway.
Navigating the Construction Process and Joist Overlaps
When a load-bearing wall is removed, it exposes the structural framing of the ceiling above. In typical residential construction, this reveals the overlap on the joists where the ends of the lumber meet directly over the old support line.
8By placing temporary shoring walls directly under these overlapping sections, builders secure the framing and clear out the central workspace. This clearance gives the installation crew the necessary physical space to lift, maneuver, and anchor the new structural beam into place. The new beam will span the entire length of the opening, taking over the load permanently.
Achieving the Final Open-Concept Outcome
After the engineered beam is securely placed, leveled, and fastened, the structural load is officially transferred to the new beam. Once that goes in, the temporary shoring walls are no longer needed and are carefully disassembled. Removing these temporary structures opens up the entire room, leaving a nice, big open space that connects previously separated areas of the home. This seamless transition transforms the layout, laying the groundwork for subsequent finish work.
Remodeling Considerations for Homeowners
- Engineering Permissions: Never assume a wall can be cut or removed without a structural engineer verifying the load paths and calculating the exact dimensions of the replacement beam.3
- Temporary Footprint: Homeowners should be prepared for temporary shoring walls to occupy space in the construction zone for a brief period, which momentarily reduces the walkable area in the home while making the workspace completely safe.5
- Dust and Safety Controls: Because removing structural elements involves cutting into older framing, proper containment zones are vital to keep wood dust and debris from migrating to other parts of the residential property.
Frequently Asked Questions
What is a load-bearing wall?A load-bearing wall is a structural component of a house that supports the weight of the elements above it, such as the roof, ceiling joists, or an upper floor. Removing one requires alternative structural support to prevent a structural failure.
How long do temporary shoring walls need to stay up?Temporary shoring walls remain in place throughout the intermediary stage of construction. They are taken down immediately after the new permanent structural beam is fully installed and secured.
Can I remove a load-bearing wall myself?No. Load-bearing wall removal requires professional structural engineering calculations, building permits, specialized shoring techniques, and heavy timber or steel beam installation to ensure the home remains structurally sound.
If you are planning a full home transformation or kitchen renovation in the Bay Area, consulting with an experienced design-build firm can help optimize your budget, permits, and design choices. For professional guidance tailored exactly to your home’s layout goals, you are welcome to connect with us today.
